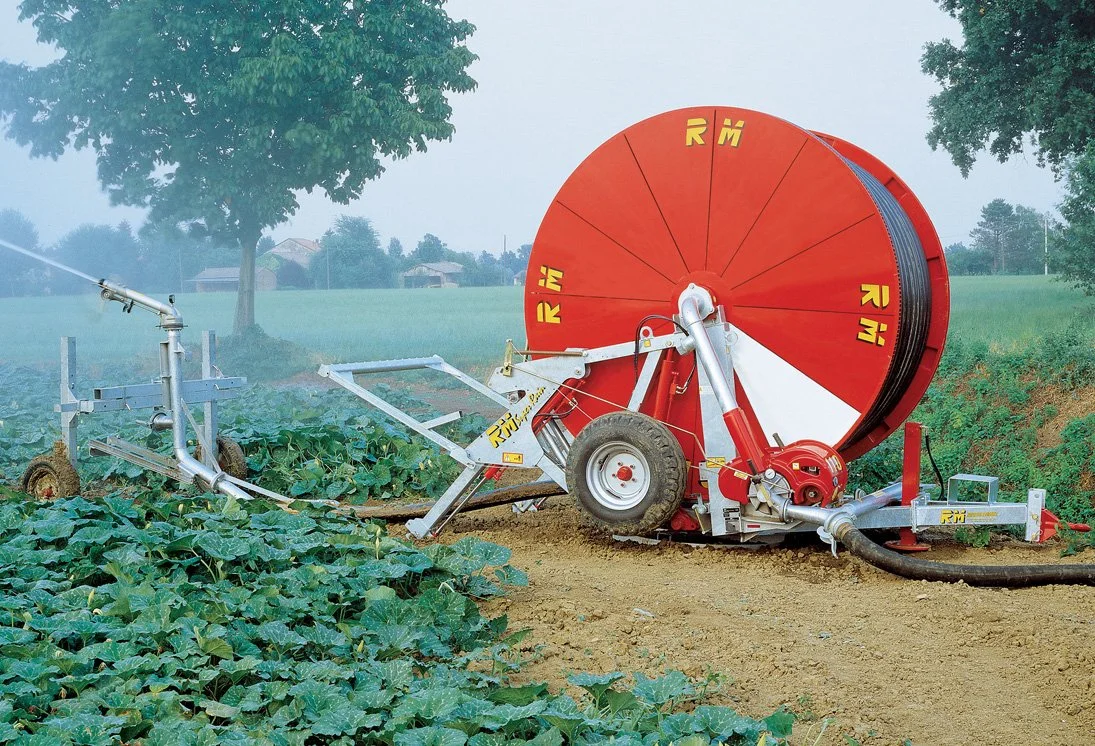

600XJ Hard Hose

This hard hose machine is most suited for clients that require superior stability. This hard hose machine has flows of up to 30.55 L/s and a max run length of 480m

Irrigated Width: 40.8 - 118m



    • 90mm hose x 450m long

    • 100mm hose x 400m long

    • 110mm hose x 350m long

    • 120mm hose x 270m long

    • 125mm hose x 250m long

    • Custom hose sizes available

    • Sime impact/ geared gun

    • Variable width gun trolley

    • Hydraulic drum rotation

    • Hydraulic front jack

    • Hydraulic rear stabiliser legs

    • Automatic gun lift

    • Water inlet on both sides

    • 4.5m inlet hose and fittings

    • Unique self-drain turbine

    • Four speed gearbox

    • PTO input shaft in gearbox

    • Pressure gauge

    • Winding handle

    • Speed equalizer

    • Safety guards

    • Hot dipped galvanised chassis

    • Nortoft Program Rain 10-12 Computer

    • MaterMacc Computer

    • Rainmaster Computer

    • IrriMop Computer

    • Galvanise drum

    • Tandem Axel

    • Fitted with inlet shut off valve

    • Fitted with dump valve

    • 40 metre boom with a maximum wetted width of 50 metres

    • 50 metre boom with a maximum wetted width of 60 metres



Making maintenance on the hardest working part of the machine easy. Adjustable teeth around the drum to reduce wear on rewind increasing chain drives working life.

Designed for efficiency with an inbuilt water bypass and fourspeed gearbox, drastically reducing pressure losses. The RM can operate with a minimum pressure of 3 bar at machine inlet.

All RM Hard hose irrigation machines feature the medium density polyethylene hose (PEMD). The hose is thickest at the reel for increased strength and resistance to losing shape.

Take a look at our 600XJ Rain Chart, based on our best seller.

600XJ 110/350 Rain Chart
