890GX Hard Hose

A big hard hose irrigator for farms with larger run lengths. This hard hose machine has flows of up to 48.6L/s and a run length of up to 680m.



Irrigated Width: 78.2 - 118m



    • 100mm hose x 550m long

    • 100mm hose x 600m long

    • 100mm hose x 650m long

    • 110mm hose x 450m long

    • 110mm hose x 500m long

    • 110mm hose x 520m long

    • 110mm hose x 550m long

    • 110mm hose x 570m long

    • 120mm hose x 400m long

    • 120mm hose x 440m long

    • 125mm hose x 370m long

    • 125mm hose x 400m long

    • 125mm hose x 420m long

    • 125mm hose x 450m long

    • 125mm hose x 500m long

    • 135mm hose x 300m long

    • 135mm hose x 350m long

    • 135mm hose x 380m long

    • 140mm hose x 300m long

    • 150mm hose x 280m long

    • Custom hose sizes available

    • Sime impact/geared gun

    • Variable width gun trolley

    • Single axel

    • Hydraulic drum rotation

    • Hydraulic front jack

    • Hydraulic rear stabiliser legs

    • Automatic gun lift

    • Water inlet on both sides

    • 4.5m inlet hose and fittings

    • Unique self-drain turbine

    • Four speed gearbox

    • PTO input shaft in gearbox

    • Pressure gauge

    • Winding handle

    • Speed equalizer

    • Safety guards

    • Hot dipped galvanised chassis

    • Nortoft Program Rain 10-12 Computer

    • MaterMacc Computer

    • Rainmaster Computer

    • IrriMop Computer

    • Galvanised drum

    • Tandem Axel

    • Fitted with inlet shut off valve

    • Fitted with dump valve

    • 40 metre boom with a maximum wetted width of 50 metres

    • 50 metre boom with a maximum wetted width of 60 metres



Making maintenance on the hardest working part of the machine easy. Adjustable teeth around the drum to reduce wear on rewind increasing chain drives working life.

Designed for efficiency with an inbuilt water bypass and fourspeed gearbox, drastically reducing pressure losses. The RM can operate with a minimum pressure of 3 bar at machine inlet.

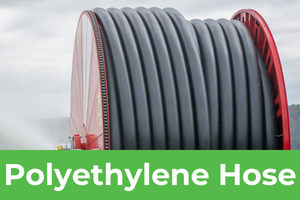

All RM Hard hose irrigation machines feature the medium density polyethylene hose (PEMD). The hose is thickest at the reel for increased strength and resistance to losing shape.

Take a look at our 890GX Rain Chart, based on our best seller.

890GX 125/500 Rain Chart
